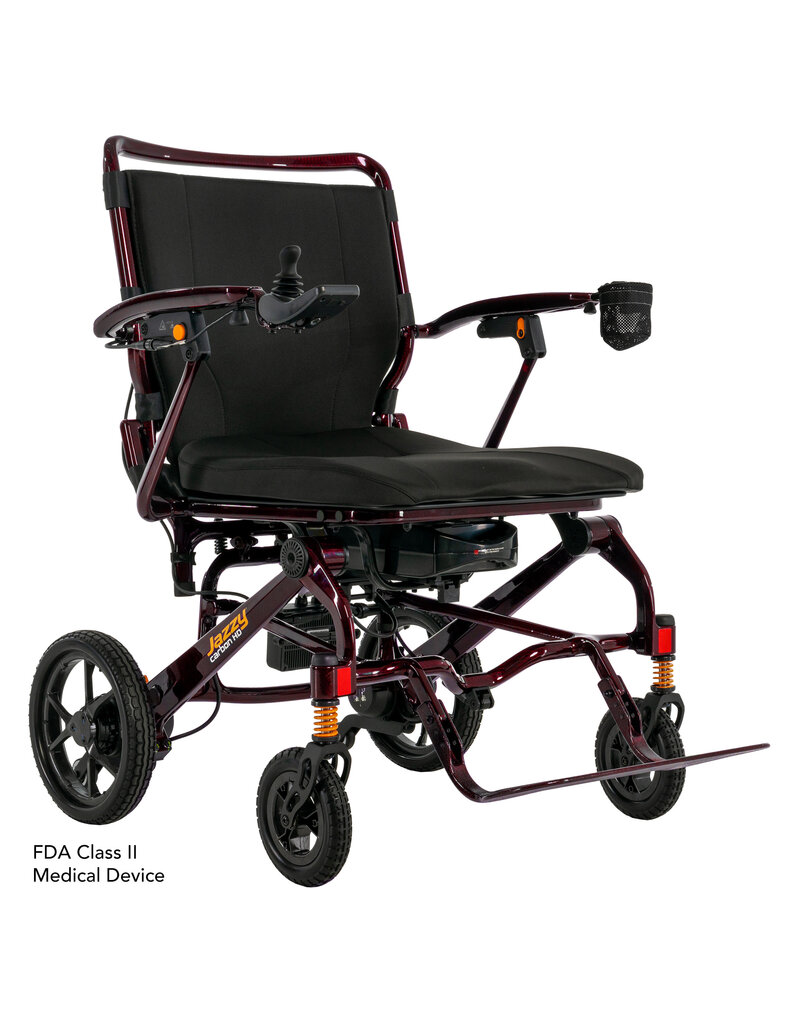

The Jazzy® Carbon HD is a folding power wheelchair built on a carbon fiber frame — delivering a rare combination of heavy-duty 400 lb. weight capacity and a total chair weight of just 32.2 lbs. without the battery. It collapses in seconds for easy transport and storage, making it one of the most capable travel-ready power chairs available. Available in two colors: Night Sky and Black Cherry.

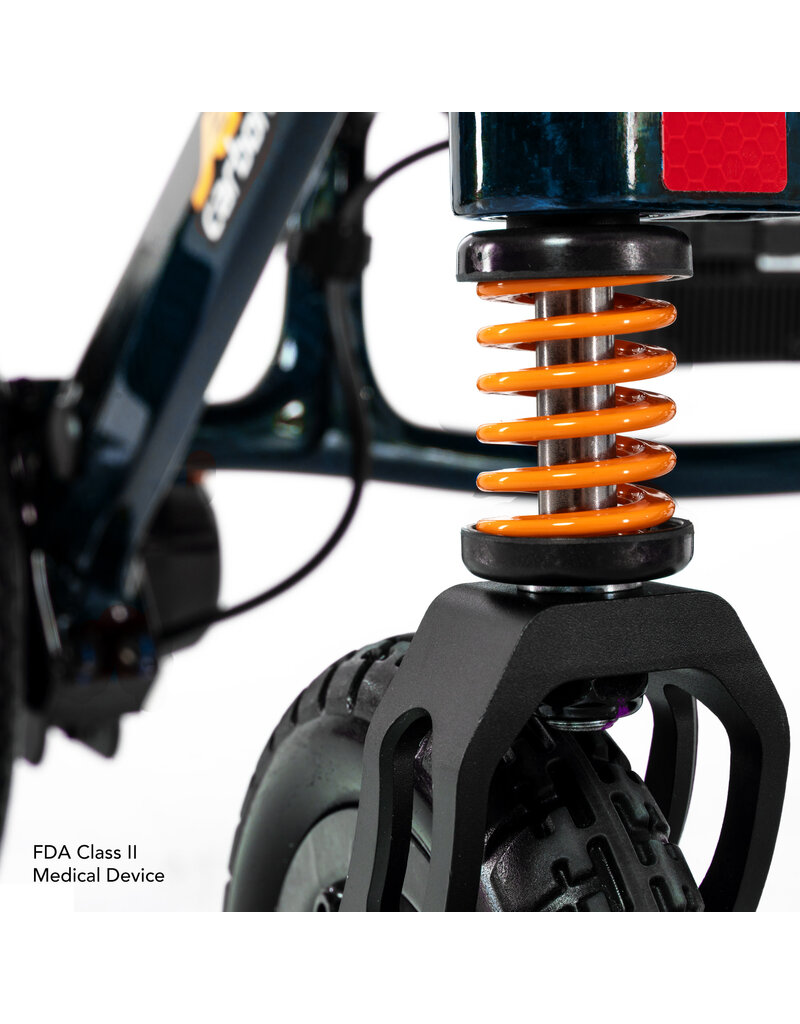

The Jazzy Carbon HD uses a durable carbon fiber frame to achieve a 400 lb. weight capacity at only 32.2 lbs. — a combination most folding power chairs can't match. Very few folding power chairs stay under 33 lbs. while supporting up to 400 lbs., giving the Carbon HD one of the best strength-to-weight ratios in its category. Its Quick Folding System collapses and locks firmly in seconds and unfolds just as easily, making it practical for everyday use and travel. Front and rear suspension provide smooth comfort across different terrains, with a top speed of 3.7 mph and a range of up to 12.4 miles per charge on its 20 AH lithium battery.

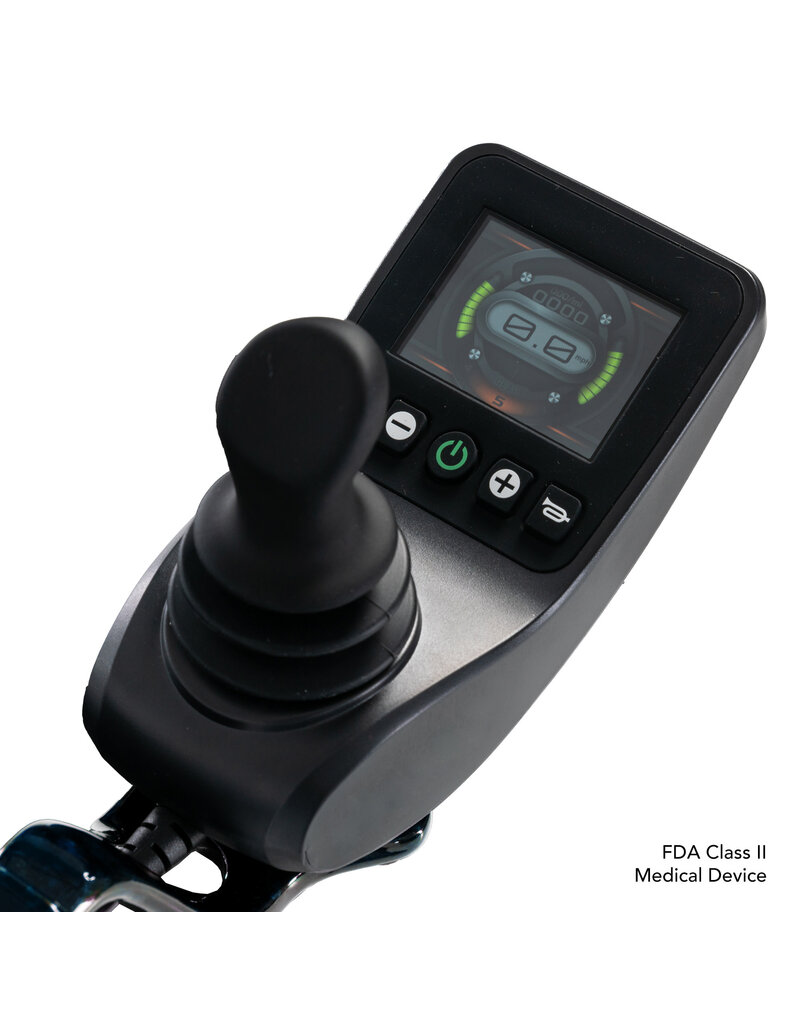

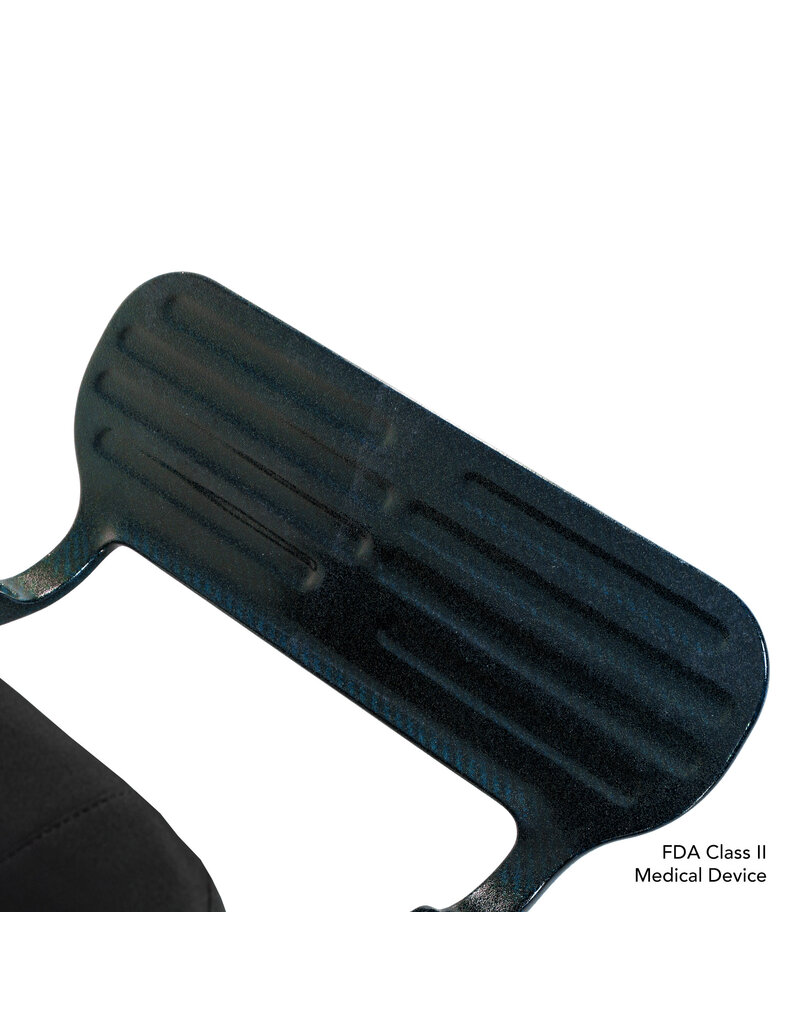

The Jazzy Carbon HD comes with a roomy 20" x 20" seat, an adjustable padded backrest with removable cushion, a wide adjustable foot platform, a seat-back storage pocket, mesh cup holder, lap belt, and standard cushion. The LCD controller mounts on either armrest and includes a digital display, USB-C charging port, and puddle light.
Yes. The Jazzy Carbon HD includes free-wheel levers that disengage the drive motors, allowing the chair to be pushed manually like a standard wheelchair when needed — useful in low-battery situations or when a caregiver needs to assist.
The standard 20 AH lithium battery may not meet all airline requirements, but an optional airline-compliant 12 AH battery is available for travelers who fly. Transport of this item on commercial aircraft is subject to federal regulations and airline policies — consult your airline before flying to confirm your chair and battery are permitted.
The Jazzy Carbon HD is available in two colors: Night Sky and Black Cherry.
The Jazzy Carbon HD is backed by a 5-year limited warranty on structural frame components, a 1-year limited warranty on electronics and drive motors, and a 1-year limited warranty on batteries.
All Pride power mobility products are FDA-approved Class II Medical Devices tested in accordance with ANSI/RESNA standards — the testing framework accepted by the FDA for power mobility equipment. Pride's Research & Development Team supplements these requirements with an additional internal testing regiment. Testing criteria include product stability and brake effectiveness, fatigue and impact strength, overall performance and durability, dimensional compliance, ergonomic verification, environmental and adverse weather testing, electronic systems performance, electromagnetic compatibility (EMC), chemical and bio-contamination analysis, and flammability compliance for foam, fabric, and plastic components.
| Model | Jazzy Carbon HD |
|---|---|
| Weight Capacity | 400 lbs. |
| Maximum Speed* | Up to 3.7 mph |
| Range Per Charge* | Up to 12.4 miles (20 AH battery) / airline-compliant 12 AH battery available |
| Total Weight Without Battery | 32.2 lbs. |
| Standard Seat | 20" x 20" |
| Overall Length** | 36.81" |
| Overall Width | 26.4" |
| Turning Radius** | 36.4" |
| Ground Clearance | 1" at motor |
| Front Casters | 6.5" solid |
| Drive Wheels | 10.6" solid |
| Motor Output | 24v / 250W |
| Braking System | Regenerative and electromechanical |
| Battery Requirements | 20 AH lithium (standard) / 12 AH lithium (airline-compliant, optional) |
| Battery Charger | 2 amp |
| Available Colors | Night Sky, Black Cherry |
| Warranty | 5-year limited (frame) / 1-year limited (electronics, motors, batteries) |
*Speed and range vary with user weight, terrain type, battery charge, battery condition, and tire pressure. **Due to manufacturing tolerances and continual product improvement, this specification is subject to a variance of +/- 3%. The information contained herein is correct at the time of publication; specifications are subject to change without prior notice.
Pride FDA Class II Medical Devices are designed to aid individuals with mobility impairments. K0899 Power Mobility Device not coded by DME PDAC. DME providers are responsible for determining appropriate billing codes when submitting for insurance reimbursement. HCPCS codes provided should not be considered as legal advice and do not guarantee reimbursement. Payer coding, coverage, and bundling guidelines may apply.
