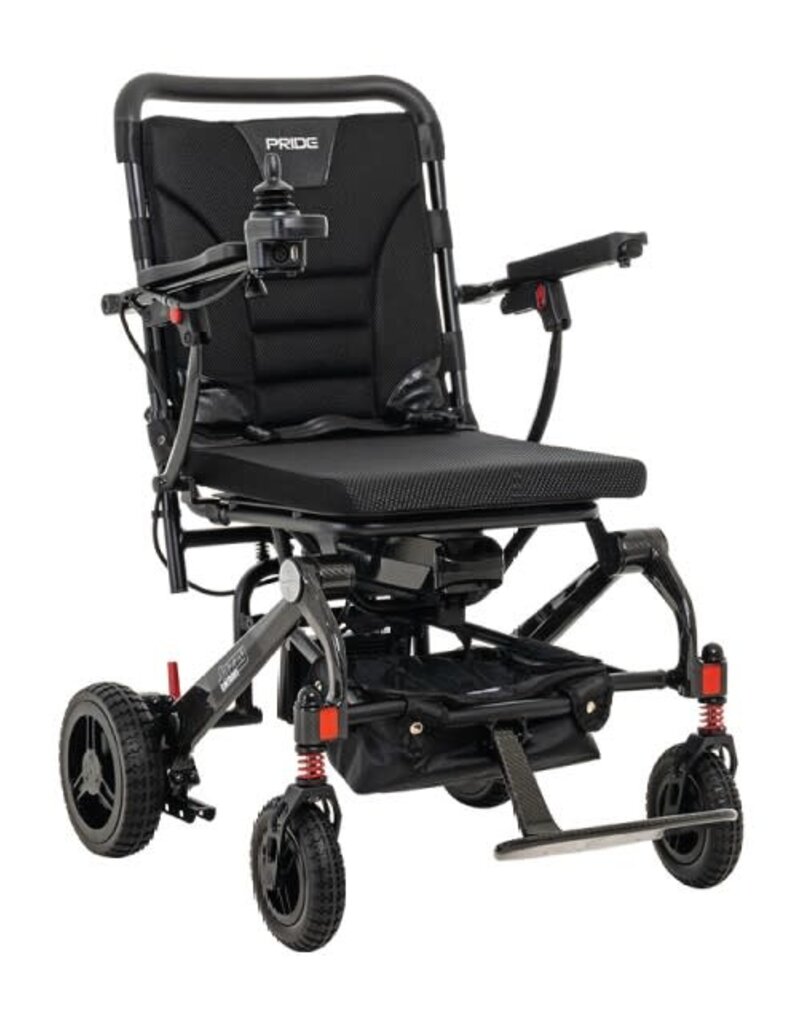

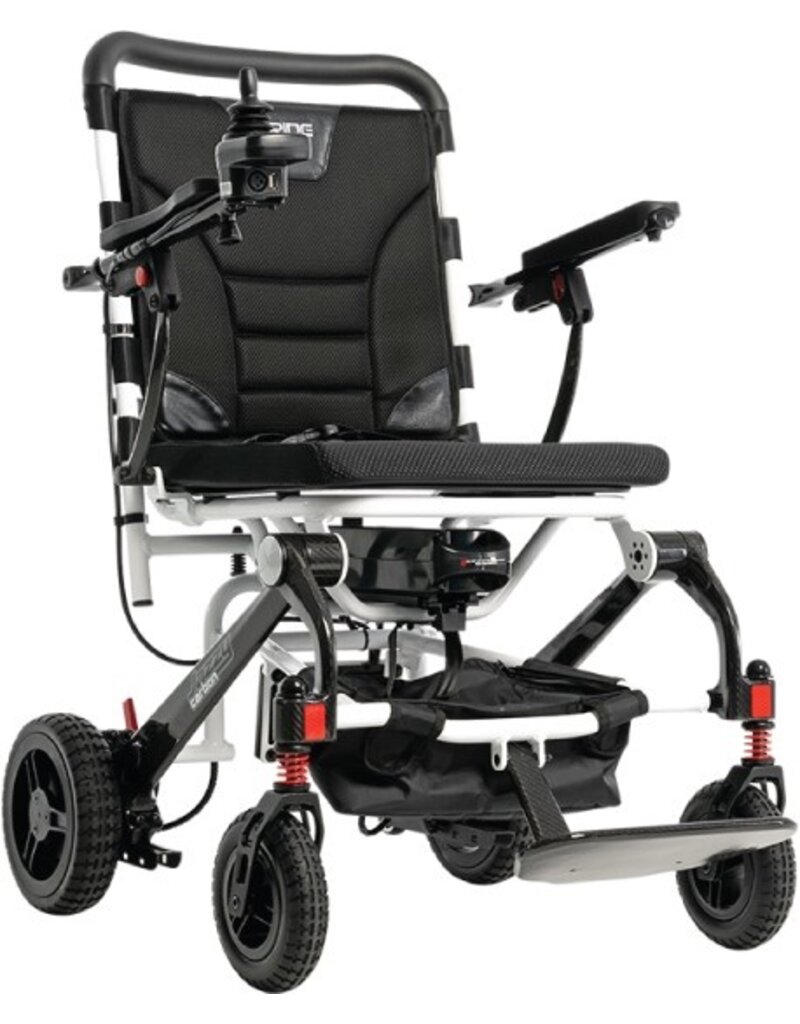

The Pride Jazzy® Carbon is a folding power wheelchair built around a carbon fiber frame, an airline-compliant 24V 12Ah lithium battery, and a 24" turning radius that is one of the tightest of any folding power chair in its class. At 39.6 lbs. without the battery (43.6 lbs. total), it folds flat in seconds to 28.3"H × 24"W × 12.2"D, carries up to 300 lbs., reaches 3.7 mph, and delivers up to 9.3 miles per charge. The quick-disconnect joystick has an integrated USB charger and mounts to either side. Front suspension smooths out uneven surfaces. Free-wheel levers disengage the motors for manual pushing. Available in Black and White. For customers who want Pride's lightest carbon fiber power chair, see also the Jazzy® Carbon 27 — the newer, lighter model at 27.8 lbs. The original Carbon has a tighter turning radius (24" vs. 33.4") and larger drive wheels (8.5") making it the stronger choice for users who prioritise indoor maneuverability over minimum weight.
The Jazzy Carbon was Pride's original answer to the question of what a travel power wheelchair should be — not a scooter, not a stripped-down transport chair, but a real power wheelchair that folds flat and flies. Carbon fiber provides the strength-to-weight ratio that makes this possible: the frame weighs 39.6 lbs. and still handles 300 lbs. of user weight, runs full-size 8.5" drive wheels, and delivers front suspension — features that basic folding chairs drop to hit a lower weight target. The result is a chair that performs indoors and outdoors, not just in airport terminals.
A 24" turning radius is remarkably tight for any power wheelchair, folding or otherwise. For reference, most standard power chairs turn in 22–26", while many folding travel chairs run 30–45" because of their longer wheelbase. The Jazzy Carbon achieves 24" turning radius, making it one of the most maneuverable folding power chairs available — navigating narrow restaurant spaces, hotel room layouts, and tight home corridors that wider-turning chairs struggle with. This tight radius is one of the key practical advantages of the original Carbon over the newer Carbon 27, which has a 33.4" turning radius. If indoor maneuverability in confined spaces is a priority, the original Carbon is the right chair. About the turning radius →

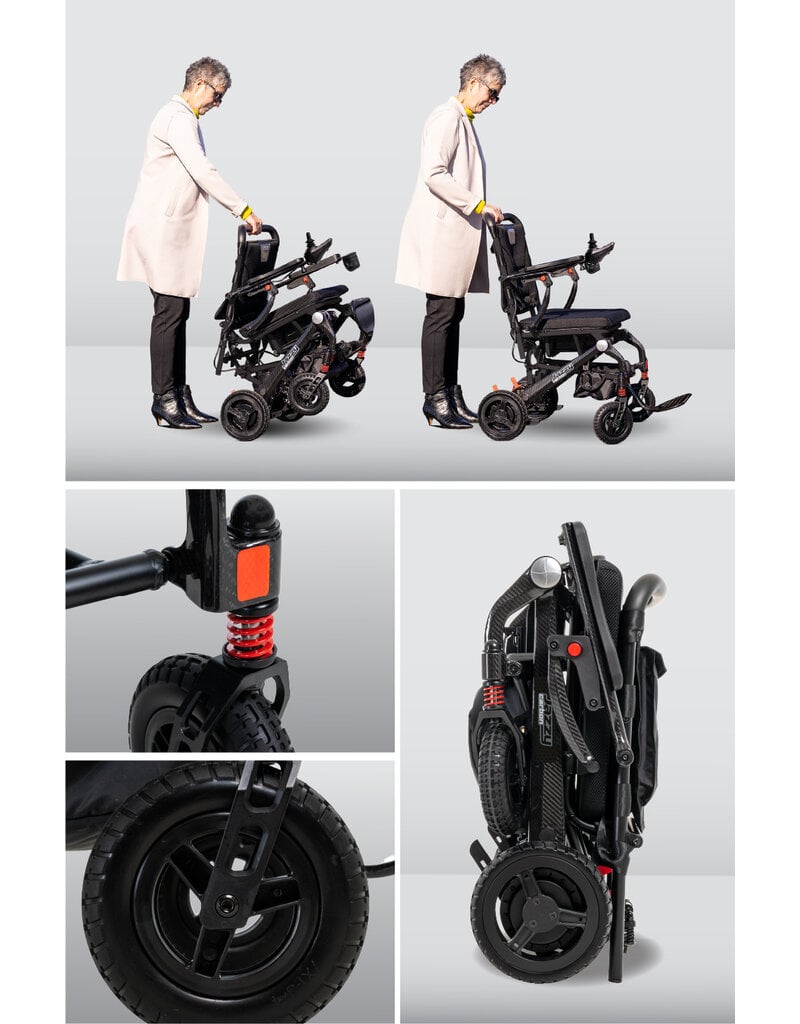

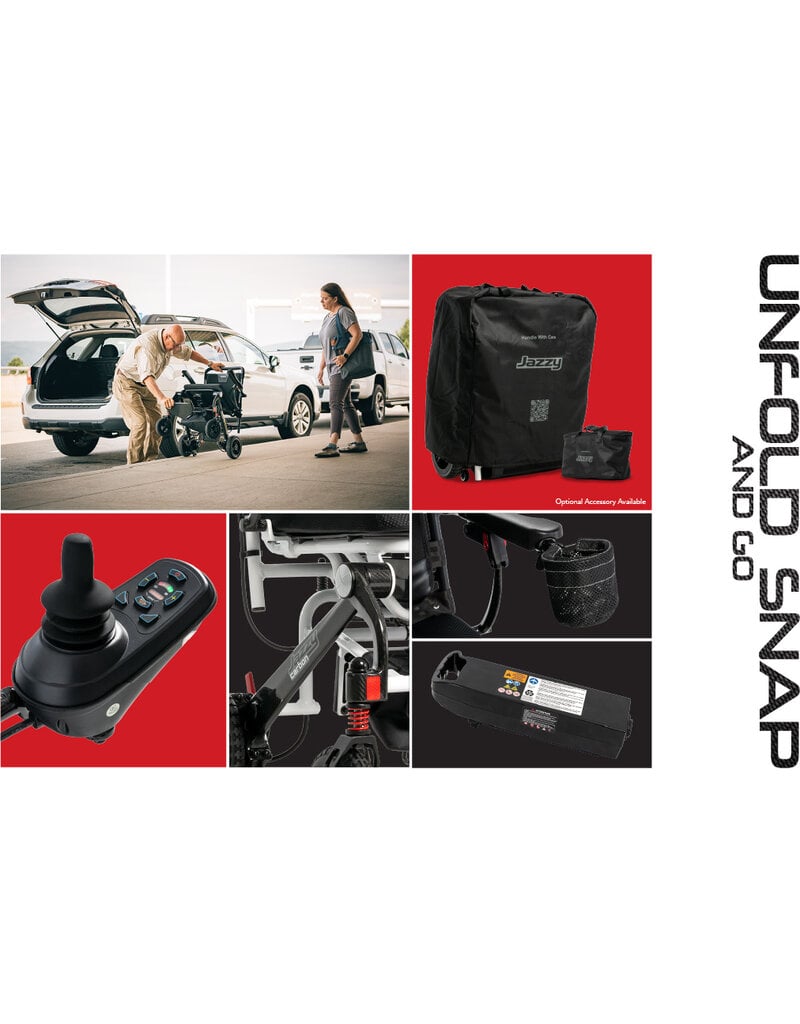

The Jazzy Carbon folds flat in a few quick motions — no tools, no disassembly, no removing the seat. Folded dimensions are 28.3"H × 24"W × 12.2"D. The 12.2" depth means it fits in most car trunks standing upright or lying flat without eating the entire cargo area. The 24V 12Ah (288Wh) lithium battery is FAA-compliant — it falls within the FAA's 300Wh limit for lithium batteries on commercial aircraft. Airlines require that lithium batteries either remain on the chair (protected from other baggage) or be removed and carried on separately with terminals covered. Always confirm your carrier's specific policy before travel. The optional Jazzy® Travel Kit includes a protective bag for the folded chair and a separate bag for the battery — useful for keeping both protected during airline transport. Airline travel details →
"The original Jazzy Carbon is still the one we recommend when a customer needs a tight turning radius — 24 inches is genuinely exceptional for a folding power chair of this capacity. It's heavier than the Carbon 27 but it turns tighter, has bigger drive wheels, and is the better choice for anyone navigating small spaces day to day. If minimum weight is the priority, the Carbon 27 is the answer. If tight indoor turning is the priority, this is the one."
Jake
General Manager & DME Expert — Broadway Home Medical, Wichita KS

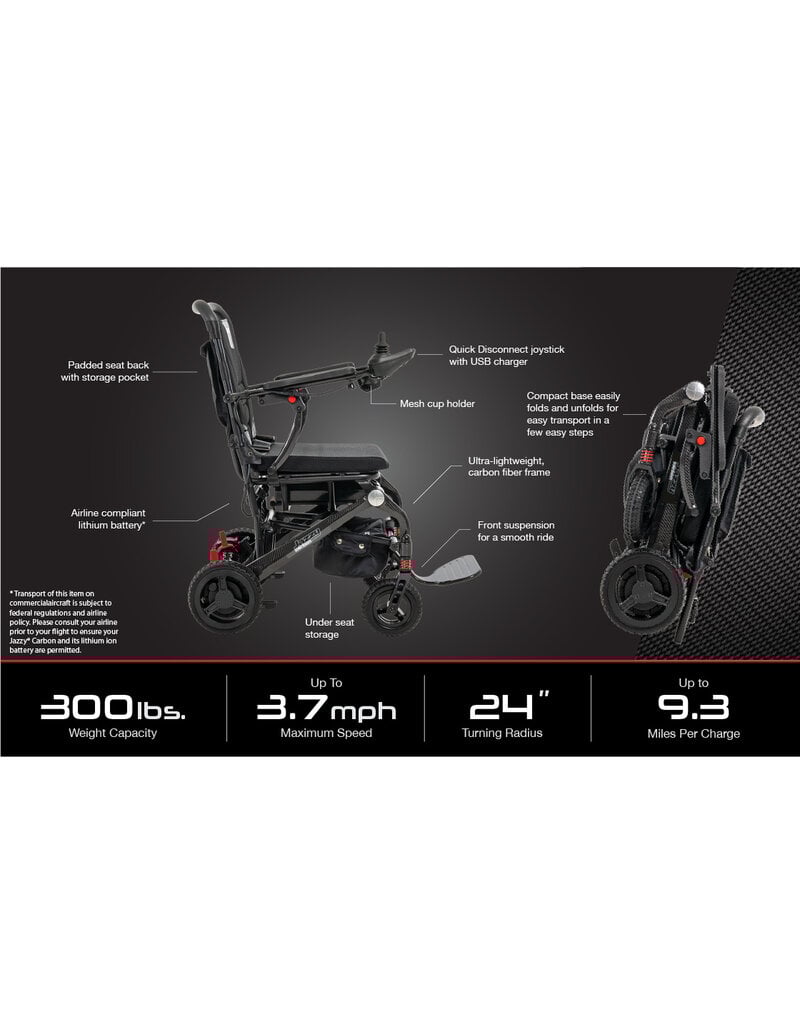

Most folding travel power chairs drop suspension to reduce weight. The Jazzy Carbon keeps front suspension — it absorbs sidewalk cracks, threshold bumps, and uneven outdoor surfaces that would jar a rigid-frame chair. The standard seat is 17"×17" with a padded cushion and a padded seat back with a storage pocket. Adjustable lap belt and mesh cup holder are standard. Under-seat storage provides additional carrying capacity. The seat-to-floor height is 20.25" with the standard cushion. The free-wheel levers disengage the drive motors so the chair can be pushed manually — useful when the battery runs low or in situations where powered operation isn't appropriate. The joystick quick-disconnects from the mount and can be moved to either side based on dominant hand preference, and includes a USB-A charging port. About daily comfort →
Both chairs use carbon fiber frames, airline-compliant lithium batteries, and fold flat for travel. The key differences: the Carbon 27 weighs 27.8 lbs. without the battery (vs. 39.6 lbs. for the original Carbon), making it 12 lbs. lighter — a meaningful gap for users who lift the chair independently. The original Carbon has a tighter turning radius (24" vs. 33.4") and larger drive wheels (8.5" vs. the Carbon 27's rear wheel size). The Carbon 27 has the advantage in weight and includes a quick-disconnect LCD joystick with a USB-C port and puddle light. If minimum lift weight is the priority, the Carbon 27 is the right choice. If tight indoor maneuverability is the priority, the original Carbon's 24" turning radius wins. Both are available at Broadway Home Medical. Full comparison →
| Model | JAZZY CARBON |
|---|---|
| Weight Capacity | 300 lbs. |
| Product Weight (without battery) | 39.6 lbs. |
| Battery Weight | 4 lbs. |
| Total Weight (with battery) | 43.6 lbs. |
| Maximum Speed | Up to 3.7 mph |
| Range Per Charge | Up to 9.3 miles |
| Turning Radius | 24" |
| Overall Length | 37" |
| Overall Width | 24" |
| Folded Dimensions | 28.3"H × 24"W × 12.2"D |
| Ground Clearance | 2" |
| Suspension | Front |
| Drive Wheels | 8.5" solid |
| Front Casters | 7" |
| Motor | 24V 250W brushless |
| Controller | 35A Brushless Micon |
| Brakes | Regenerative and electromechanical |
| Battery | 24V 12Ah (288Wh) lithium-ion — airline compliant |
| Battery Charger | 2 amp lithium-ion off-board |
| Seat | 17"×17" padded foam with removable cushion |
| Seat-to-Floor (with cushion) | 20.25" |
| Seat-to-Floor (without cushion) | 18.75" |
| Colors | Black, White |
| HCPCS Code | K0899 |
| FDA Classification | Class II Medical Device |
| Warranty — Frame | Lifetime limited |
| Warranty — Electronics / Drivetrain / Battery | 1 year limited |
Common questions from customers at Broadway Home Medical considering the Jazzy Carbon.
The Jazzy Carbon's 24" turning radius is achieved through its rear-wheel drive configuration and compact wheelbase. Most folding travel power chairs compromise on turning radius because of their longer frames. The Carbon's frame design prioritises maneuverability — at 24" it can complete a full turn in a doorway or narrow corridor without needing to rock back and forth. For users who spend significant time in tight indoor spaces, this is a decisive advantage over chairs with 30–45" turning radii.
The Jazzy Carbon 27 is the newer, lighter model at 27.8 lbs. without the battery — 12 lbs. lighter than the original Carbon's 39.6 lbs. The Carbon 27 also includes a more advanced LCD joystick with USB-C port and puddle light. However, the original Carbon has a tighter turning radius (24" vs. 33.4") and larger 8.5" drive wheels. Choose the Carbon 27 if minimum weight is the priority. Choose the original Carbon if tight indoor turning is the priority, or if you prefer the larger drive wheels for outdoor stability.
The standard 24V 12Ah (288Wh) lithium battery is FAA-compliant for commercial aircraft — it falls under the FAA's 300Wh limit. However, airline policies vary and must be confirmed with your specific carrier before travel. If the battery remains on the chair, it must be protected from other baggage. If removed, battery terminals must be covered and the battery taken as carry-on luggage. The optional Jazzy® Travel Kit includes dedicated bags for the folded chair and the battery for airline transport.
The Jazzy Carbon folds flat in a few quick motions without tools or removing the seat. Once folded it locks into position. Folded dimensions are 28.3"H × 24"W × 12.2"D — the 12.2" depth allows it to fit in most car trunks standing upright or lying flat. It unfolds and snaps back into the riding position just as quickly.
The Carbon includes front suspension, a 17"×17" padded seat with a removable cushion, a padded seat back with storage pocket, and an adjustable lap belt — more comfort infrastructure than most folding travel chairs at this weight. The front suspension absorbs door thresholds and pavement transitions that a rigid-frame chair transmits directly. For users who need the chair for a full day of travel or activity, these features make a meaningful difference over stripped-down ultralight chairs. An optional Stealth® Simplicity cushion upgrade is also available.
Yes — free-wheel levers disengage the drive motors so the chair can be pushed manually like a standard wheelchair. This is useful when the battery runs low, when a caregiver needs to assist, or in any situation where powered operation isn't appropriate.
The Jazzy Carbon carries HCPCS code K0899 — Power Mobility Device, not coded by DME PDAC. Medicare reimbursement is not guaranteed and depends on individual eligibility and medical necessity. Broadway Home Medical can discuss your insurance situation and help you understand the process.
The Jazzy Carbon is available at Broadway Home Medical, Wichita's largest DME store. Stop by either of our two locations to see the chair in person, try the folding mechanism, and compare it to the Jazzy Carbon 27 if you're deciding between the two models.
Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments. Speed and range vary with user weight, terrain type, battery charge, battery condition, and tire pressure. Specifications subject to change without notice. Transport on commercial aircraft is subject to federal regulations and airline policy — consult your airline prior to travel. Battery warranty requires weekly charging during storage or non-use. HCPCS code K0899 should not be considered legal advice and does not guarantee reimbursement.
