The Pride Jazzy® Elite ES is a full-size, front-wheel-drive power wheelchair with a 24.75" turning radius, 300 lb. weight capacity, up to 15 miles of range per charge, and a Group 2 Medicare classification (K0822/K0823). Pride calls it America's Favorite Power Chair — a mid-tier full-size chair that has been a mainstay of the Jazzy lineup for its combination of indoor maneuverability and outdoor performance. Three seat sizes (16", 18", and 20" widths) with depth-adjustable, limited-recline, fold-flat high-back seating. Height, width, and angle adjustable armrests. Flip-up foot platform. Easy-access free-wheel levers. PG GC3 controller. Available in Candy Apple Red only. 5-year limited frame warranty.
The Elite ES is the power wheelchair that consistently gets recommended when a customer needs a full-size chair for daily home use — not a folding travel chair, not a scooter, but a proper power wheelchair with a full seat back, adjustable seating, and the kind of turning radius that makes indoor navigation genuinely practical. The front-wheel-drive configuration is the core engineering decision that defines the chair's character: large 9" drive wheels at the front absorb bumps, climb obstacles, and carry the chair over uneven surfaces in a way that mid-wheel and rear-wheel configurations handle differently. Combined with the 24.75" turning radius, the Elite ES navigates standard home environments — narrow hallways, bathroom doorways, kitchen corners — without the constant backing-and-filling that less agile power chairs require.
Most casual users don't think much about drive wheel position, but it's the most important factor in how a power chair behaves day-to-day. Front-wheel drive places the large 9" drive wheels at the front of the chair, ahead of the rider's weight. This means when the chair encounters a threshold, a sidewalk crack, or a transition between floor surfaces, the drive wheels hit it first and pull the chair over — rather than requiring the drive wheels to push through from behind. The result is better obstacle-climbing ability and a smoother ride on surfaces that aren't perfectly flat. Front-wheel drive chairs also tend to feel more responsive when turning because the pivot point is toward the back of the chair. The tradeoff compared to mid-wheel drive is that front-wheel chairs can feel slightly less intuitive when reversing in tight spaces — a characteristic that's easy to adapt to with brief practice. More about front-wheel drive →
Pride describes the Elite ES specifically as optimised for "indoor maneuverability in small spaces" — and the 24.75" turning radius is the specification that backs that claim. Most full-size power wheelchairs turn in 25–35" or more. At 24.75" the Elite ES can complete a full turn in a standard 36" doorway, navigate between furniture in a standard living room, and manage the tight geometry of most home bathrooms without requiring structural modifications to the space. This is the turning radius that makes the Elite ES practical as a primary wheelchair in a typical American home — not just in wide-open spaces or accessible facilities. About the turning radius →
The Jazzy Elite ES is a Group 2 power wheelchair under Medicare's power mobility device classification system — a meaningful distinction from Group 1. Group 2 (K0822 for standard without power seat, K0823 for standard with power seat) covers patients who have a mobility limitation that significantly impacts their ability to perform mobility-related activities of daily living, and who cannot self-propel a manual wheelchair — but whose clinical needs don't require the complex rehab features of Group 3. Group 2 has a defined Medicare reimbursement pathway with documented medical necessity, physician involvement, and face-to-face evaluation requirements. For patients who clinically qualify for a Group 2 power wheelchair, the Elite ES is one of the most commonly covered models in this class. Broadway Home Medical can assist with the Group 2 Medicare evaluation and documentation process. About Group 2 Medicare coverage →
"The Elite ES is what we fit more often than anything else in the full-size power chair category. The 24.75-inch turning radius in a chair with this kind of range and seat adjustability is the combination most people need for daily home use. It fits through standard doorways, it handles the bump between carpet and hardwood, and it goes 15 miles on a charge — which means most users charge it once a day and never worry about it running out. The Group 2 Medicare classification opens real coverage options for patients who qualify. It's a chair that earns its reputation."
Jake
General Manager & DME Expert — Broadway Home Medical, Wichita KS
The Elite ES is available in three seat widths — 16", 18", and 20" — each with depth adjustment and limited recline. The seat back folds flat for transport or when the chair needs to fit through tight spaces or be loaded into a vehicle. Seat-to-floor height ranges from 21.5" to 23.5". The armrests adjust in height, width, and angle — a level of adjustability that allows proper upper body positioning for a wide range of users. The 60" lap belt is standard. Optional accessories include elevating leg rests, swing-away leg rests, heel loops, and multiple additional belt lengths. Three seat widths are listed below; match the seat to the user's hip width with approximately 1–2" of clearance on each side. About seat sizing →
| Seat Width | Seat Depth | Best For |
|---|---|---|
| 16" | 16"–18" | Narrow frame / smaller adult |
| 18" | 18"–20" | Average adult frame |
| 20" | 18"–20" | Wider hip width |
The Elite ES runs two 12V U-1 batteries (25 lbs. each) on a 40A PG GC3 controller, delivering up to 15 miles of range per charge. For most users in a home environment this means plugging in overnight and never running low during the day. For users who take the chair outdoors for longer outings — grocery shopping, medical appointments, community events — 15 miles provides significant margin. The 3.5 amp off-board charger plugs into a standard outlet. Replacement batteries carry HCPCS code E2365 for separate Medicare billing when medically necessary.

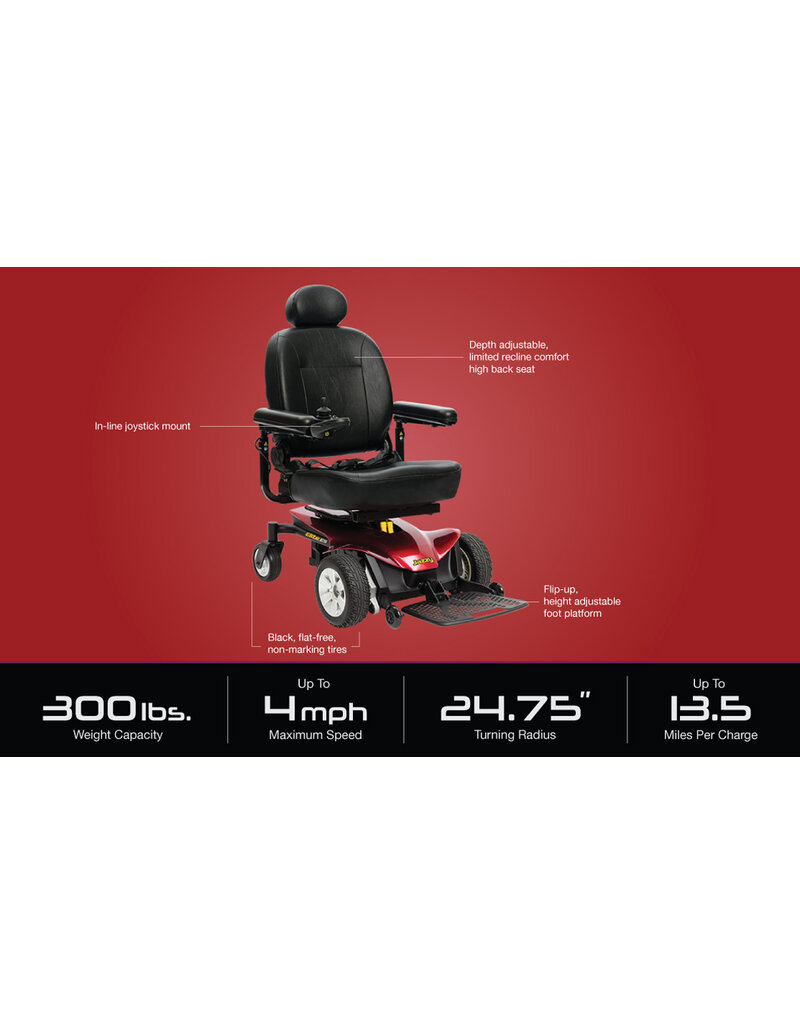

| Weight Capacity | 300 lbs. |
|---|---|
| Maximum Speed | Up to 4 mph |
| Range Per Charge | Up to 15 miles |
| Turning Radius | 24.75" |
| Overall Length | 34.75" / 41" with footplate |
| Overall Width | 22.75" |
| Ground Clearance | 1.85" at motors |
| Drivetrain | Front-wheel drive, two-motor, in-line |
| Drive Wheels | 9" solid |
| Rear Casters | 6" solid |
| Anti-Tip Wheels | 3" solid |
| Controller | PG GC3, 40A |
| Brakes | Regenerative and electromechanical |
| Suspension | Limited |
| Seat Sizes Available | 16"×16"-18", 18"×18"-20", 20"×18"-20" |
| Seat-to-Floor Range | 21.5"–23.5" |
| Base Weight | 69 lbs. (heaviest piece) |
| Seat Weight | 50.2 lbs. (comfort high-back) |
| Battery Weight | 25 lbs. each (two required) |
| Battery Charger | 3.5 amp off-board |

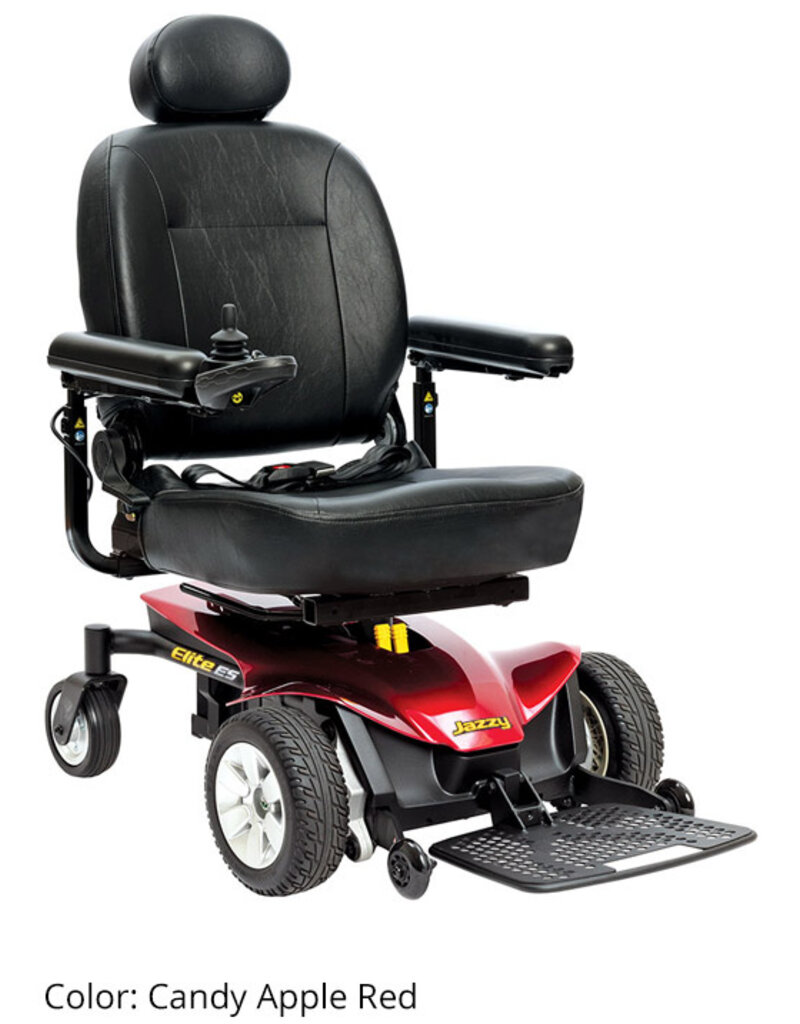

| Color | Candy Apple Red only |
| HCPCS — Chair | K0822 (Group 2 Standard) / K0823 (Group 2 Standard with power seat) |
| HCPCS — Battery | E2365 |
| Warranty — Frame | 5-year limited |
| Warranty — Drivetrain / Electronics / Battery | 13 months limited |
Common questions from customers at Broadway Home Medical considering the Jazzy Elite ES.
Front-wheel drive places the large 9" drive wheels at the front of the chair, ahead of the rider's center of gravity. When the chair encounters a threshold, a carpet edge, or an uneven surface, the drive wheels contact it first and pull the chair over — absorbing the impact and climbing the obstacle more smoothly than if the wheels were pushing from behind. Front-wheel drive also provides excellent outdoor performance on varied terrain. The tradeoff is that reversing in very tight spaces can feel slightly less intuitive than mid-wheel drive — something most users adapt to quickly.
A 24.75" turning radius means the chair can complete a full 360-degree turn in a circle approximately 49.5" in diameter — just over 4 feet. Standard interior doorways are 32"–36" wide. Standard bathrooms are 60"–96" across. The Elite ES can navigate both without the multi-point turning that wider chairs require. For daily home use in a standard American house, this turning radius means the chair fits the space rather than the space needing modification to fit the chair.
The Elite ES is classified as a Group 2 power wheelchair under Medicare's power mobility device coding system. Group 2 (K0822 or K0823) covers patients who have a mobility limitation significantly impacting their ability to perform mobility-related activities of daily living and who cannot self-propel a manual wheelchair. Unlike Group 1, Group 2 requires a face-to-face clinical evaluation, documentation of the patient's mobility limitation, and physician involvement. When a patient meets the clinical criteria for Group 2, the Elite ES has a defined Medicare reimbursement pathway. Broadway Home Medical can guide you through the evaluation and documentation process.
Seat width is determined by hip width — measure the widest point of the hips and add 1"–2" for clearance on each side. The 16" seat is appropriate for a narrower frame or smaller adult; the 18" fits most average adults; the 20" suits a wider hip width. Seat depth should support the full length of the thigh without pressure behind the knee — measure from the back of the buttocks to the back of the knee. The depth-adjustable seat on the Elite ES provides a range within each size. Always fit in person at Broadway Home Medical before ordering.
A power wheelchair is controlled by a joystick mounted to the chair and is driven from a seated position with no steering column. Scooters use a tiller for steering and require the user to reach forward to operate. Power wheelchairs generally have tighter turning radii, better indoor maneuverability, higher-back seating with more postural support, and a different Medicare classification (Group 2 vs. K0800/K0801 for scooters). Power wheelchairs are the appropriate choice for users who cannot independently operate a tiller, who need full upper-body support from the chair back, or who require the higher Medicare classification that Group 2 provides. Scooters are appropriate for users with sufficient upper body and arm function to operate a tiller and who primarily need transport assistance rather than full postural support.
The easy-access free-wheel levers disengage the drive motors so the chair can be pushed manually by a caregiver. This is essential for situations where the battery runs down, the chair needs to be repositioned in a tight space, or powered operation is impractical — such as in a vehicle or during transport. The levers are designed to be accessible without tools and without requiring the user to transfer out of the chair.
The Elite ES carries a 5-year limited warranty on the frame and 13-month limited warranties on the drivetrain, electronics, and battery. Pride is not responsible for labor, service calls, or shipping for repairs. Contact Broadway Home Medical for full warranty terms and service support in the Wichita area.
The Jazzy Elite ES is available at Broadway Home Medical, Wichita's largest DME store. Stop by either of our two locations to sit in the chair, experience the front-wheel drive turning radius in person, and be properly fitted for seat size before ordering. If you're pursuing Group 2 Medicare coverage, our staff can walk you through the evaluation and documentation process from start to finish.
Jazzy® Power Chairs are FDA Class II Medical Devices designed to aid individuals with mobility impairments. Speed and range vary with user weight, terrain type, battery charge, battery condition, and tire pressure. Specifications subject to change without notice. HCPCS codes K0822 and K0823 should not be considered legal advice and do not guarantee reimbursement. DME providers are responsible for determining appropriate billing codes. Medicare Group 2 coverage requires documented medical necessity, face-to-face physician evaluation, and meeting CMS eligibility criteria. 5-year limited frame warranty; 13-month limited on drivetrain, electronics, and battery.
